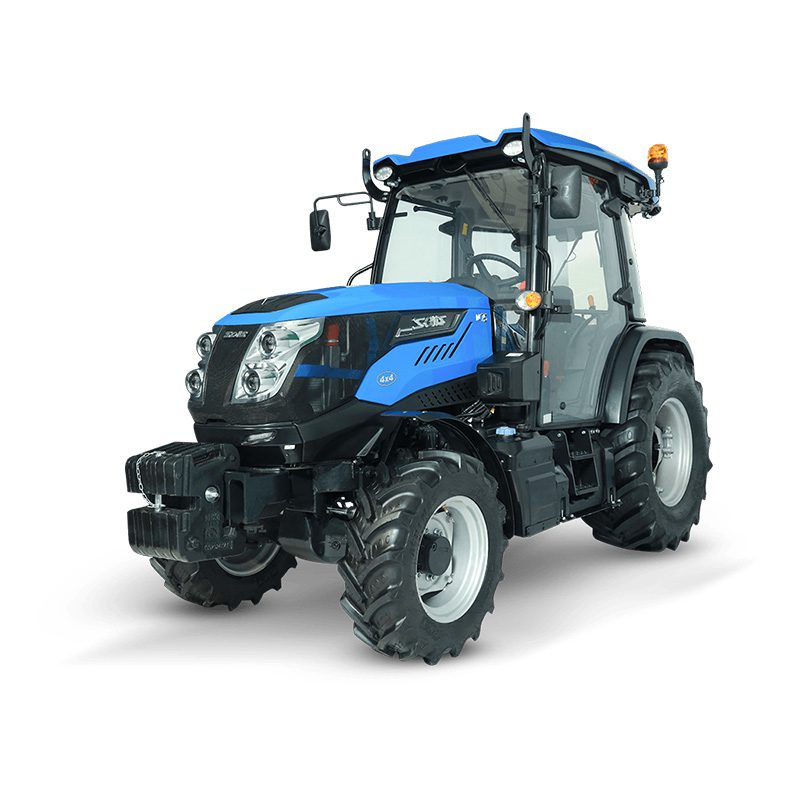

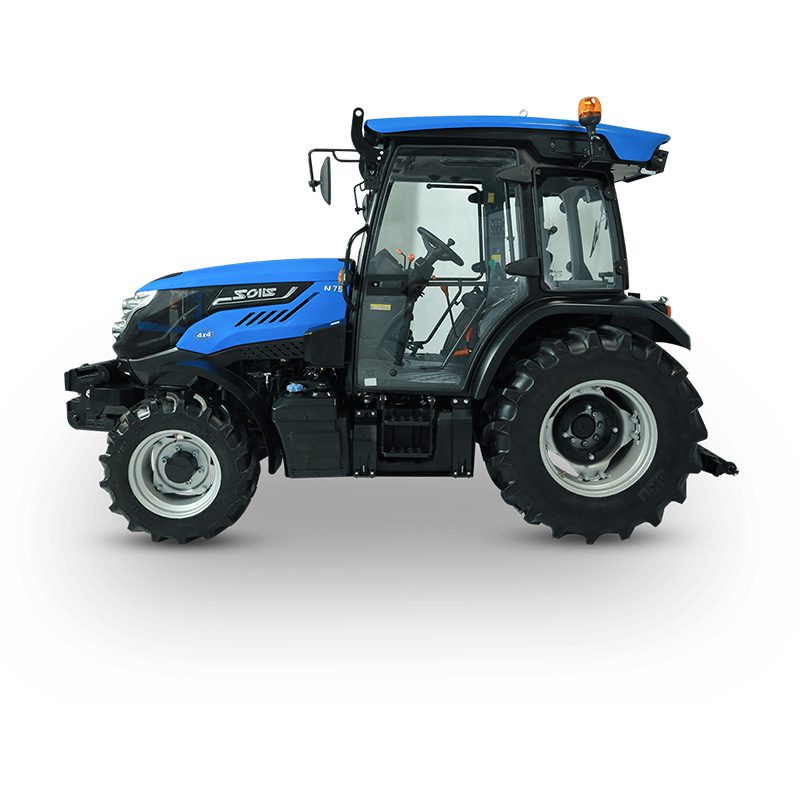

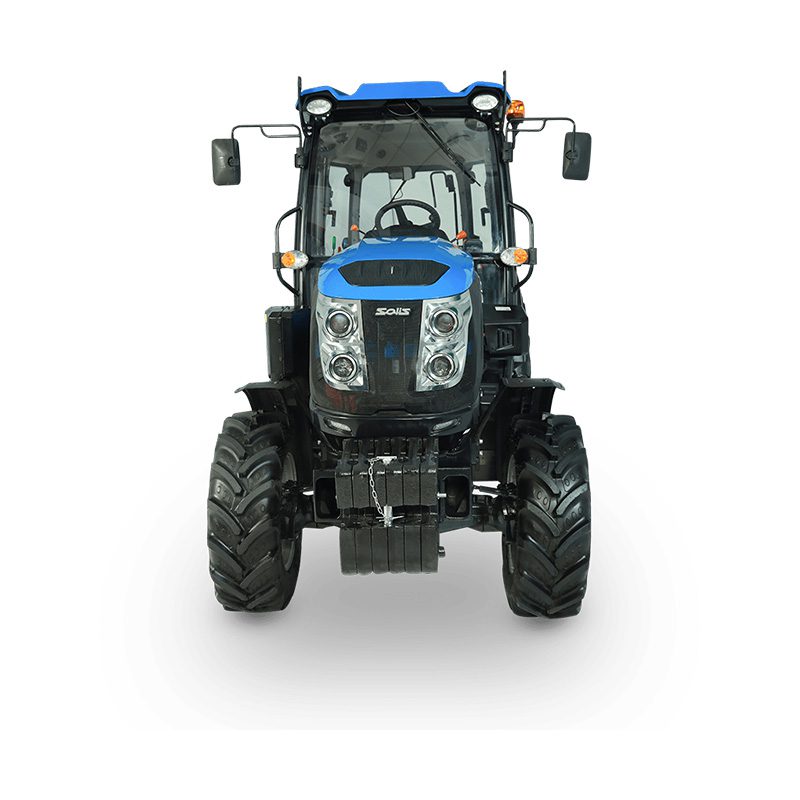

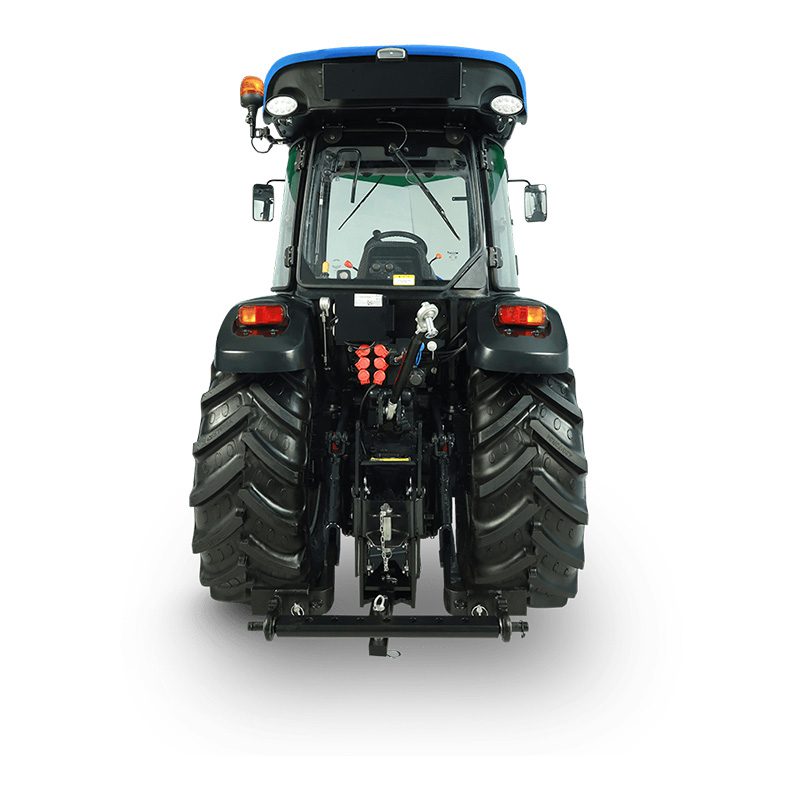

Solis N75 Narrow Tractor
POWER THAT PERFECTS NARROW PRECISION
Built for high-precision agricultural environments, the Solis N75 is a 75 HP narrow tractor engineered to perform efficiently in orchards, vineyards, and confined field conditions. Powered by a 4-cylinder turbocharged 4.1L engine, it delivers strong torque output and consistent performance across demanding tasks. The 12F+12R synchronized power shuttle transmission ensures smooth direction changes and precise control, especially in operations requiring frequent maneuvering. With a compact width of around 1400 mm and a CAT IV pressurized cabin, the N75 combines maneuverability, safety, and operator comfort, making it ideal for intensive, specialized farming.
4-CYLINDER TURBOCHARGED ENGINE FOR HIGH TORQUE OUTPUT
12F+12R POWER SHUTTLE TRANSMISSION FOR PRECISE CONTROL
CAT IV PRESSURIZED CABIN FOR SAFE OPERATION
NARROW DESIGN FOR ORCHARDS, VINEYARDS & SPECIALTY FARMING
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | Diesel Stage V, 4 cylinders, liquid cooled |
| HP Category | 75 HP |
| No. of Cylinders | 4 |
| Air Cleaner | 2-stage air filter |
| TRANSMISSION | |
| Drive | 4×4 |
| Gearbox | 12F + 12S |
| Transmission | Power Shuttle with electro-hydraulic shuttle |
| SPEED (FORWARD) Agri Tyre | |
| Maximum Speed (Km/Hr) | 40 km/h |
| Brakes | |
| Brakes | Multi-disc braking system in oil bath |
| PTO | |
| PTO (rpm) | 540 / 540E / 1000 |
| PTO (actuation) | Mechanical |
| STEERING | |
| Steering | Hydraulic power steering |
| HYDRAULICS | |
| Hydraulic Lifting Capacity (Kg) | 2500 |
| Auxiliary Hydraulic Circuit) | 2 independent pumps (steering + lifting) |
| Category | Details |
| Cabin | CAT IV pressurized cabin with air conditioning, heating & active air filtration |
| Fuel Tank | 70 L |
| Seat | Adjustable seat with mechanical suspension |
| Lighting | Front and rear LED work lights |
| Visibility | 360° panoramic visibility |
| Floor | Flat floor design |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights with std. Ballast | Front weights-15×2 |
|
Trailer Hitch
|
1. Semi Automatic Trailer Hitch |
| 2. Swinging Drawbar (Optional) | |
| ROPS | Yes |
| Cabin Option | Yes |
| Parameter | Value | ||
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | |||
| Weight (Kg) | 3386 | ||
| Total Width (mm) | 1400–1515 mm |
| Feature | Details |
| Cabin Comfort | Soundproof cabin with low vibrations |
| Safety | CAT IV protection against pesticides and dust |
| Hydraulics | Double auxiliary hydraulic sockets |
| Transmission | Fast, intuitive handling for repetitive work |
| Build | Robust and durable construction |
MAJOR APPLICATIONS
The Solis N75 is purpose-built for precision farming where space, control, and safety are critical. Ideal for orchards, vineyards, spraying operations, and greenhouse work, it delivers efficient performance in narrow rows and confined areas. Its high-torque engine, compact design, and advanced transmission make it especially effective for tasks like spraying, mulching, and inter-row cultivation, while the pressurized cabin ensures safe operation in chemically intensive environments.
