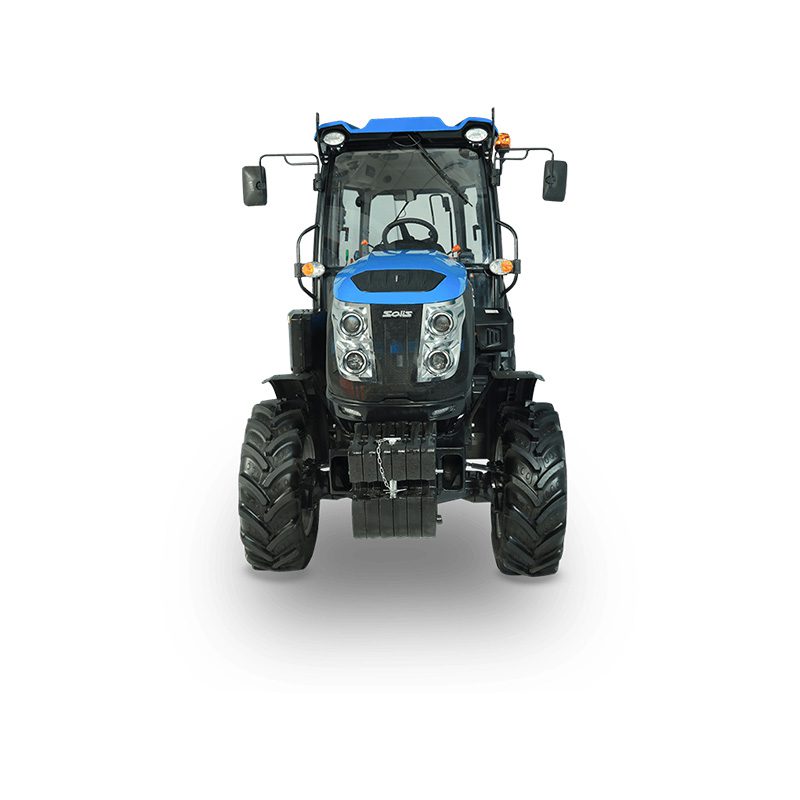

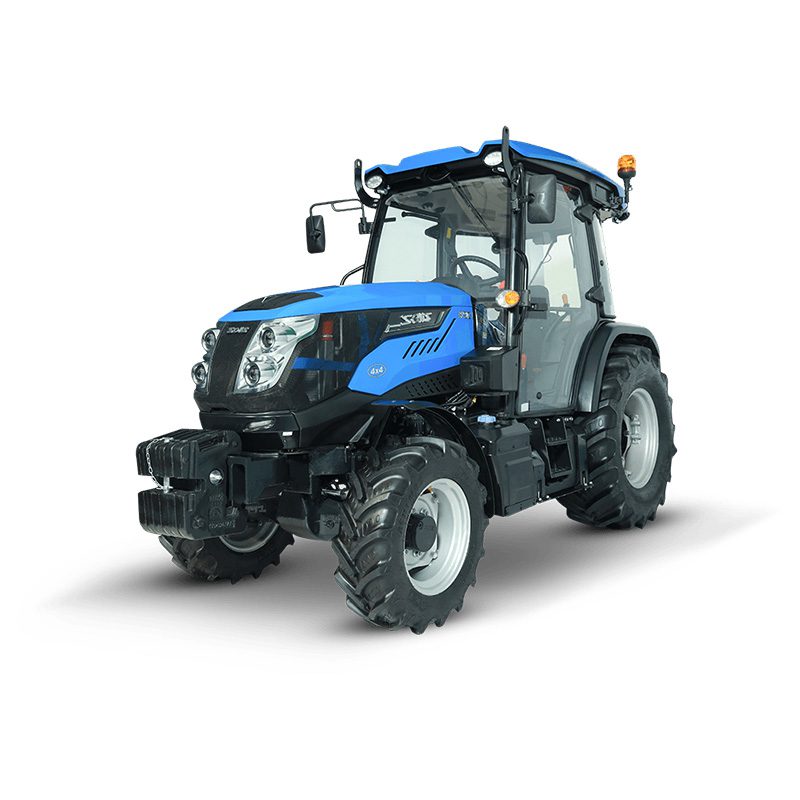

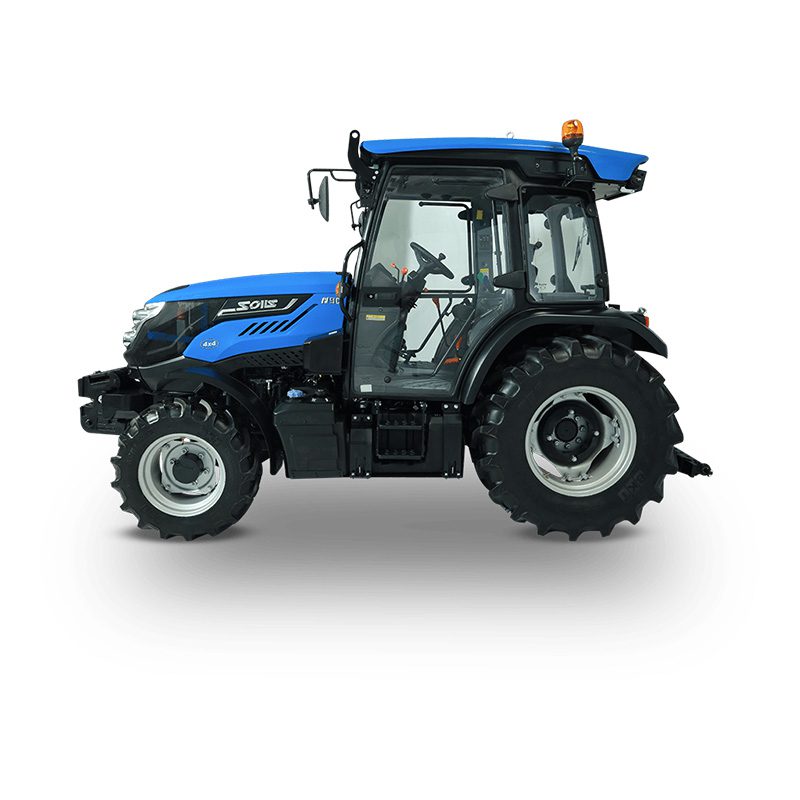

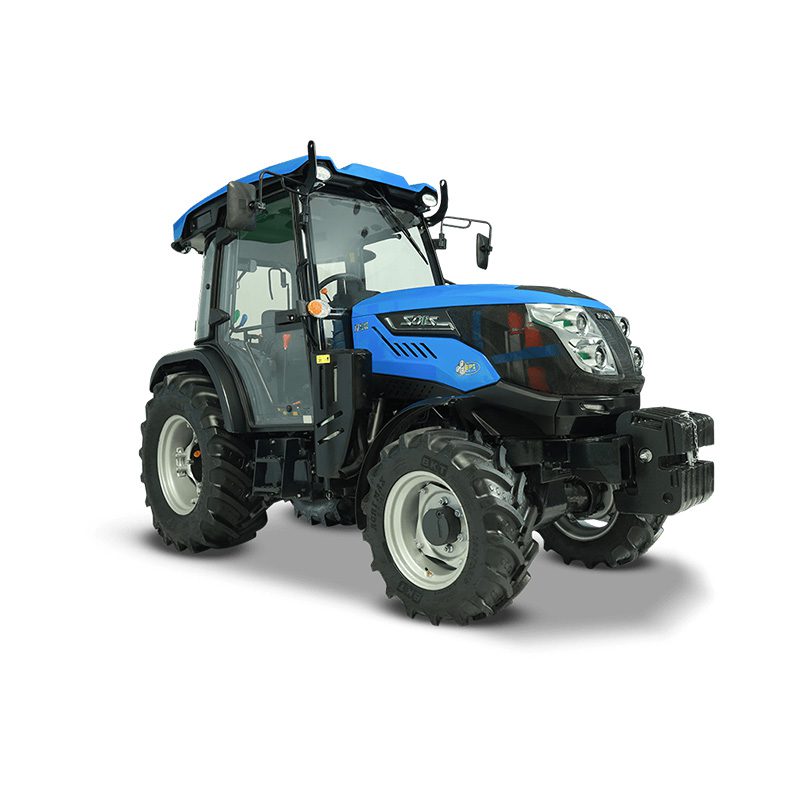

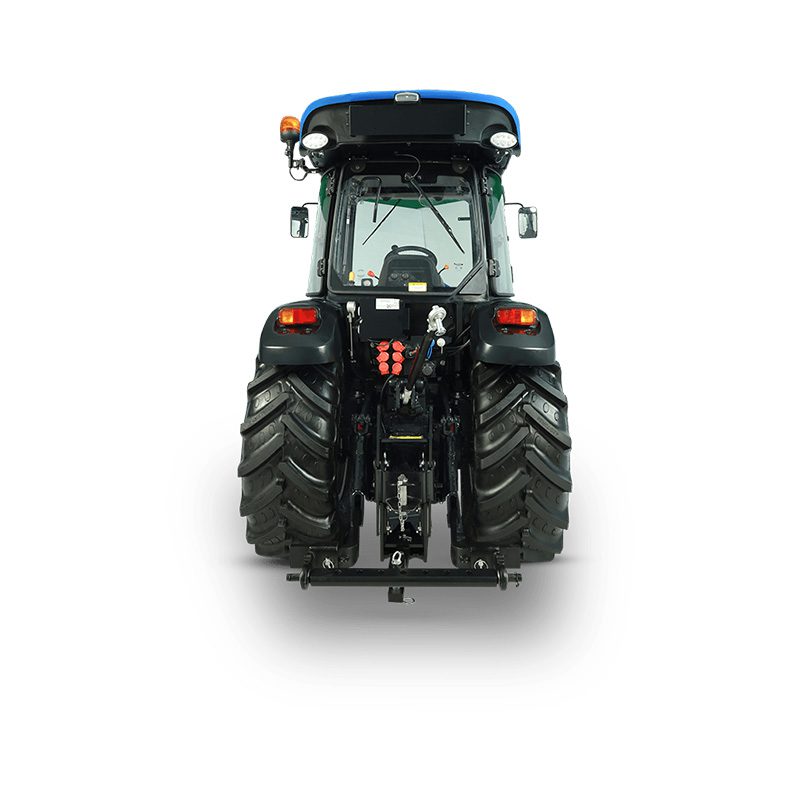

Solis N90 Narrow Tractor
POWER THAT MASTERED PRECISION FARMING
Engineered for specialized agricultural environments, the Solis N90 is a 90 HP narrow tractor built to deliver power, precision, and protection in demanding conditions. Powered by a 4-cylinder turbocharged Stage V engine, it ensures high torque output and consistent performance across intensive tasks. The 12F+12R power shuttle transmission allows seamless direction changes and precise control, making it ideal for operations requiring frequent manoeuvring. Designed with a CAT IV pressurized cabin, the N90 protects operators from dust, chemicals, and external exposure while ensuring comfort during long working hours. Compact in design yet powerful in capability, it is built to perform where standard tractors cannot.
90-HP 4-CYLINDER TURBOCHARGED ENGINE
12F+12R POWER SHUTTLE TRANSMISSION
CAT IV PRESSURIZED CABIN WITH AC & ANTI-CHEMICAL FILTER
NARROW DESIGN FOR ORCHARDS, VINEYARDS & SPECIALITY FARMING
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | Diesel Stage V, liquid-cooled |
| HP Category | 90 HP |
| No. of Cylinders | 4 |
| Cooling | Liquid-cooled |
| Emission standard | Stage V |
| TRANSMISSION | |
| Drive | 4×4 all-wheel drive |
| Gearbox | Power Shuttle 12F + 12R |
| Clutch | Wet clutch |
| Shuttle | Hydraulic shuttle |
| Maximum speed | 40 km/h |
| Transmission | Power Shuttle with hydraulic shuttle |
| SPEED (FORWARD) Agri Tyre | |
| Maximum Speed (Km/Hr) | 40 km/h |
| BRAKES | |
| Brakes | Multi-disc oil-bath |
| PTO | |
| PTO (RPM) | 540 / 540E / 1000 RPM |
| STEERING | |
| Steering | Hydraulic-assisted |
| ELECTRICAL | |
| Front Light | LED |
| Rear lights | LED |
| Dashboard | Digital |
| HYDRAULICS | |
| Hydraulic Lifting Capacity (Kg) | 2500 |
| Auxiliary Hydraulic Circuit | Double pump (steering + functional) |
| Category | Details |
| Cabin | CAT IV pressurized cabin with air conditioning, heating & anti-chemical filtration |
| Seat | Premium seat with air suspension |
| Lighting | Front and rear LED lights |
| Dashboard | Digital dashboard |
| Visibility | Panoramic visibility |
| CABIN & COMFORT | |
| Air conditioning | Standard |
| Heating | Standard |
| Seat | Premium with mechanical suspension |
| CAPACITY (Ltrs.) (+/-5%) | |
| Fuel tank (Ltr.) | 88 |
| STANDARD FEATURES | |
| Liftomatic system | Standard |
| Oil-immersed multi-disc brakes | Standard |
| 4×4 all-wheel drive | Standard |
| Bosch fuel injection | Standard |
| OPTIONAL EQUIPMENT | |
| Hydraulic & pneumatic trailer sockets | Optional Optional |
| Front loader | Optional |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights with std. Ballast | Front weights-15×2 |
|
Trailer Hitch
|
1. Semi Automatic Trailer Hitch |
| 2. Swinging Drawbar (Optional) | |
| ROPS | Yes |
| Cabin Option | Yes |
| Parameter | Value | ||
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | |||
| Weight (Kg) | 3440 | ||
| Total Width (mm) | 1400–1515 mm |
| Special Feature | Details |
| Braking System | Multi-disc oil-bath braking |
| Maneuverability | Excellent control in tight spaces |
| Hydraulics | Dual rear hydraulic jacks with separate control |
| Electrical System | Modern electrical system |
| Ergonomics | Top ergonomics with panoramic visibility |
MAJOR APPLICATIONS
The Solis N90 is purpose-built for precision farming environments where space, control, and operator safety are critical. Ideal for orchards, vineyards, greenhouses, and speciality crops, it performs efficiently in narrow rows and confined areas. Its high-torque engine and advanced transmission make it suitable for spraying, mulching, mowing, and soil preparation, while the pressurised cabin ensures safe operation in chemically intensive applications.
