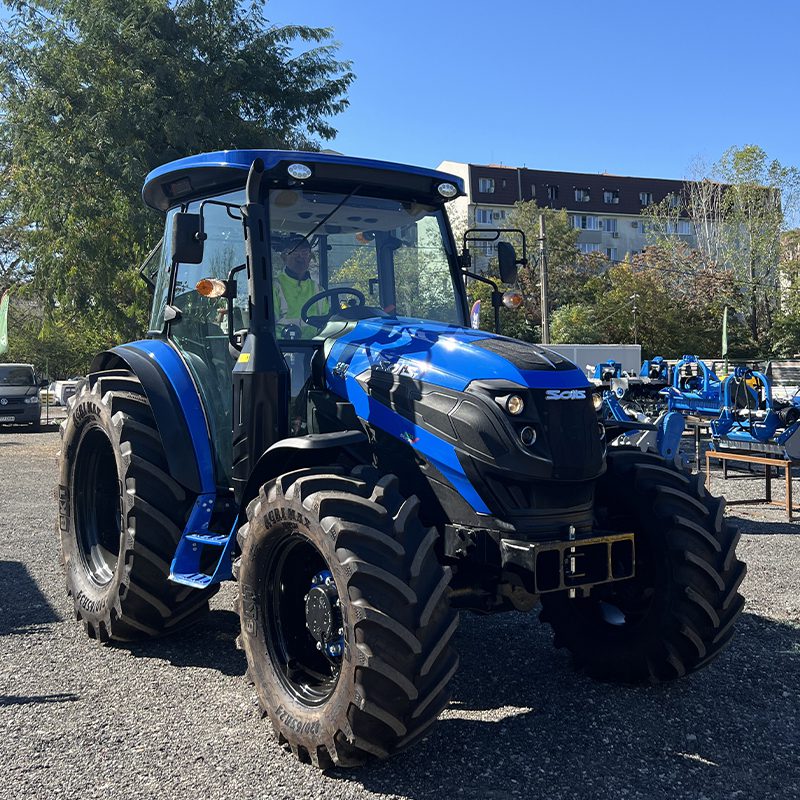

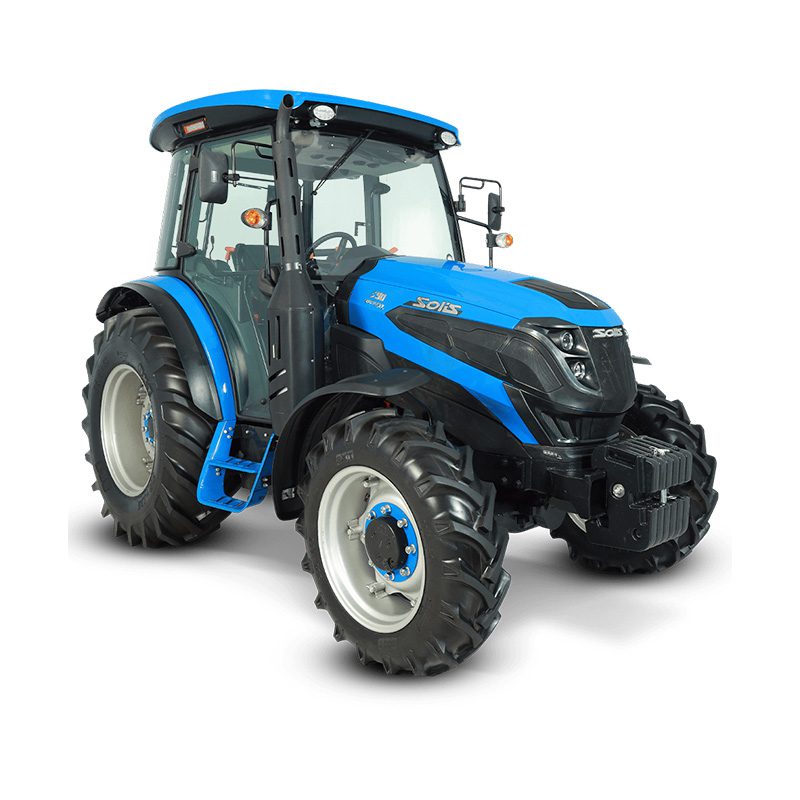

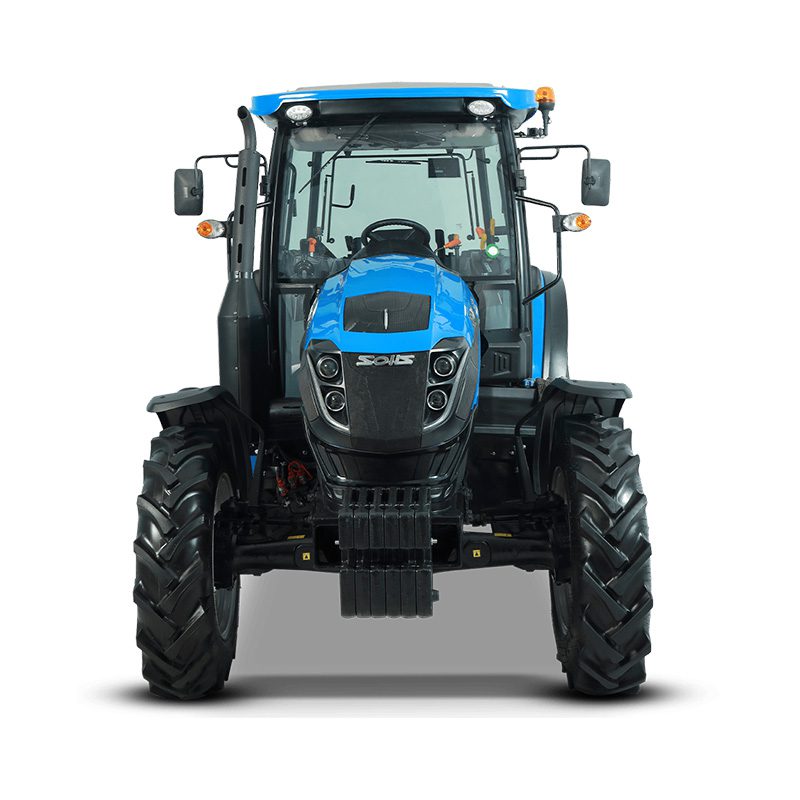

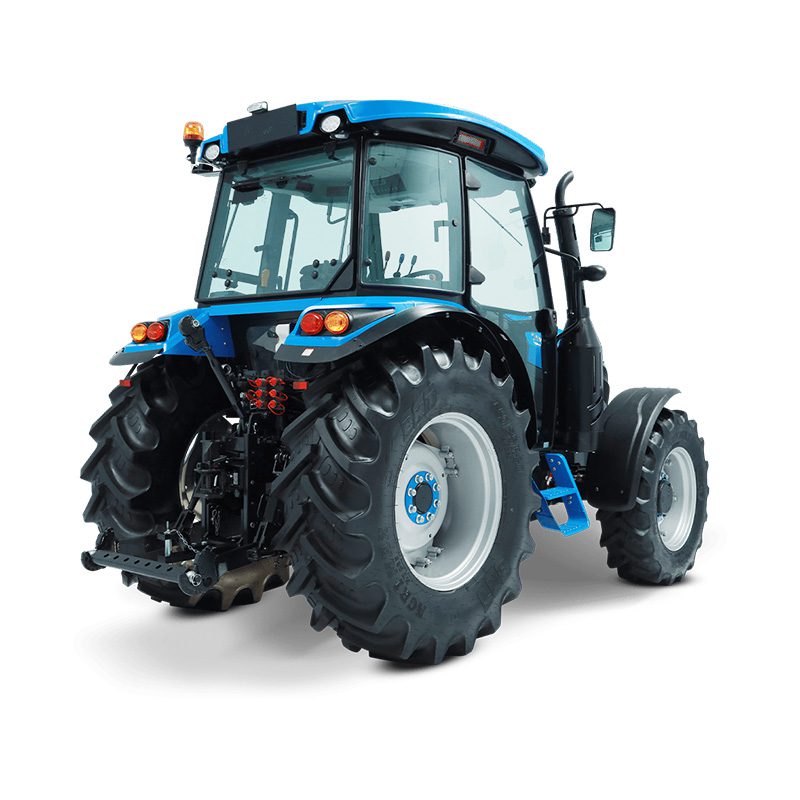

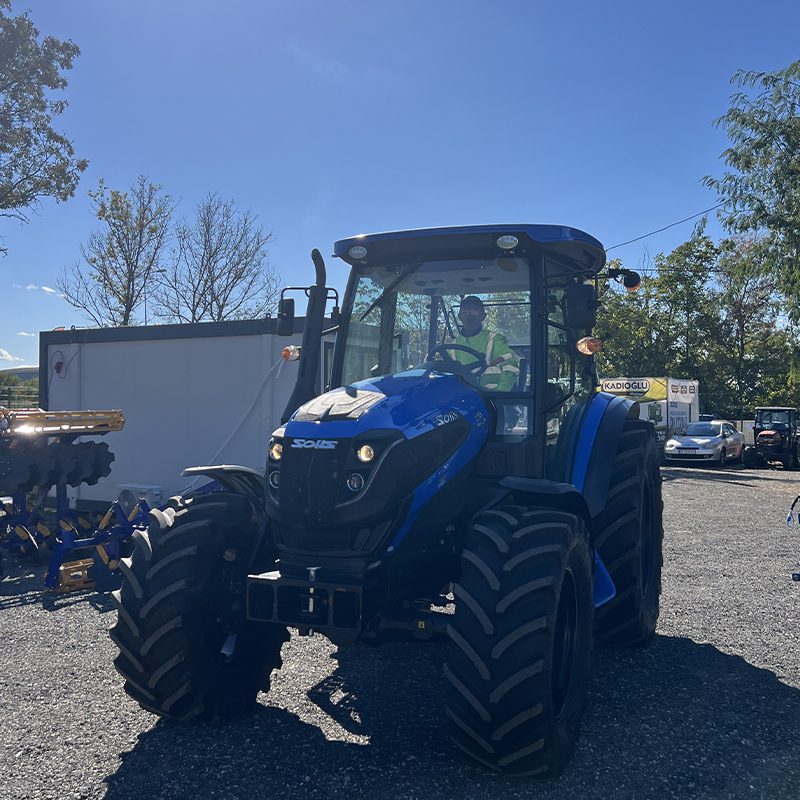

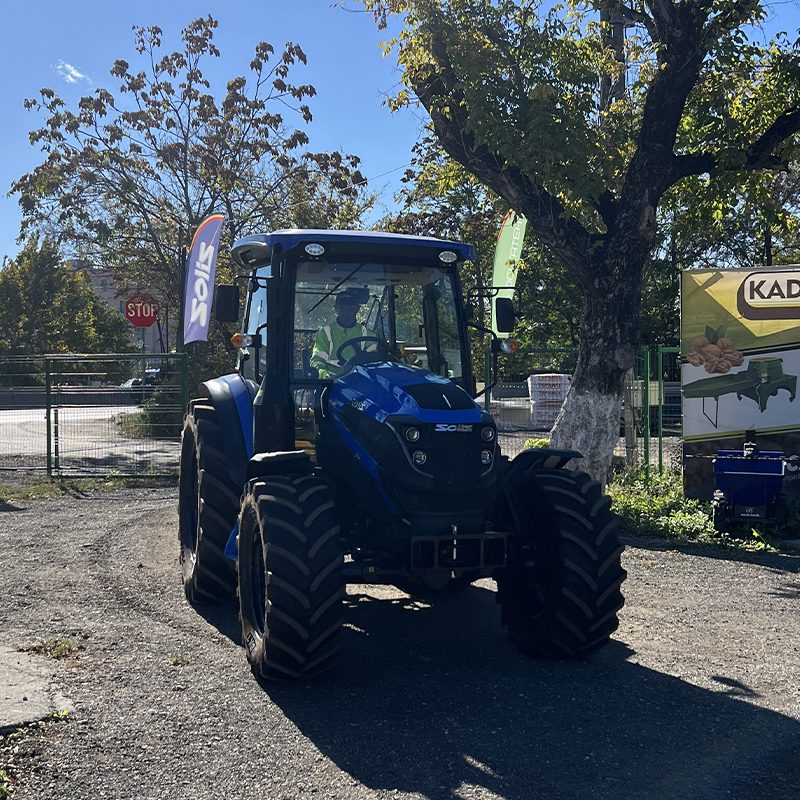

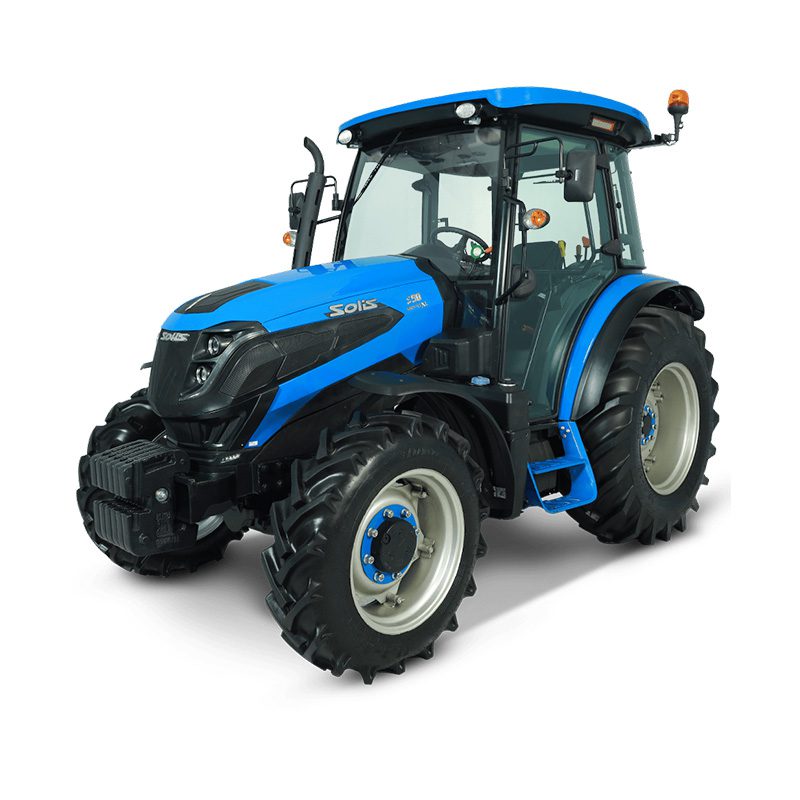

Solis S90 CAB Tractor
POWER, COMFORT & CONTROL FOR INTENSIVE FARMING
The Solis S90 tractor with cabin is engineered for high-performance and intensive agricultural operations. Powered by a 90 HP Stage V diesel engine with Bosch Common Rail injection, this tractor delivers superior efficiency, power, and reliability. The fully synchronised 20F+20R transmission with Super Creeper ensures precise speed control, while the 4WD system provides excellent traction across all terrains. With an enclosed air-conditioned cabin and an advanced braking system, it offers maximum comfort and safety during long working hours.
Solis S90 is built to handle heavy-duty agricultural tasks such as ploughing, sowing, haulage, and operations with advanced implements. Its powerful engine, advanced hydraulics, and superior transmission system ensure maximum productivity with reduced effort.
90 HP engine with high-performance torque output
Fully synchronized 20F + 20R transmission with Super Creeper
Compressor with dual & single circuit air braking system
High lifting capacity up to 3000 kg
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | ITL 4105 CTIV Diesel – 4 cylinders, Bosch Common Rail, Turbocharged Intercooler |
| HP Category | 90 HP |
| No. of Cylinders | 4 |
| Aspiration | Turbocharged Intercooler |
| Cubic Capacity (cc) | 4087 |
| Exhaust | Stage V |
| Muffler | Particle Filter + ADBLUE System |
| TRANSMISSION | |
| Drive | 4WD (2WD/4WD electric coupling/decoupling) |
| Clutch | Dry – Ceramic Double Disc |
| Gearbox | Fully Synchronized Mechanical 20F + 20S |
| Front Axle | 4WD |
| Transmission | 20+20 Super Creeper |
| SPEED (FORWARD) Agri Tyre | |
| Maximum Speed (Km/Hr) | 34.87 |
| Minimum Speed (Km/Hr) | 1.22 |
| BRAKES | |
| Brakes | Oil-enclosed Discs |
| Type of Actuation | Compressor – Pneumatic Double and Single Circuit |
| Parking Brake | Independent Handbrake |
| DIFFERENTIAL LOCK | |
| Differential Lock | Mechanical – operated by pedal |
| PTO | |
| PTO (RPM) | 540 / 540E |
| PTO (Actuation) | Mechanical |
| ELECTRICAL | |
| Battery | 130 Ah / 12V |
| Alternator | 120A |
| HYDRAULICS | |
| 3 Point Linkage | Cat II |
| Hydraulic Lifting Capacity (Kg) | 3500 |
| Auxiliary Hydraulic Circuit | 4 auxiliary hydraulic outputs |
| TYRE | |
| Front | 12.4×24 |
| Rear | 18.4×30 |
| Fuel Tank (Ltr.) | 110 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights with std. Ballast | Front weights-15×2 |
|
Trailer Hitch
|
1. Semi Automatic Trailer Hitch |
| 2. Swinging Drawbar (Optional) | |
| ROPS | Yes |
| Cabin Option | Yes |
| Parameter | Value | ||
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | |||
| Weight (Kg) | 4,245 | ||
| Wheel Base (mm) | 2,350 | ||
| Total Length (mm) | 3,985–4,200 | ||
| Total Width (mm) | 2,110–2,200 | ||
| Height (mm) Up to ROPS | 2,350–2,500 |
| Front & Rear Weights with Std. Ballast | 2×34 kg side + 6×31 kg removable | ||
| Trailer Hitch | Height adjustable trailer coupling | ||
| Roll Over Protection | Fully enclosed cabin with AC |
MAJOR APPLICATIONS
The Solis S90 stands out with excellent fuel efficiency, helping reduce operational costs while maintaining high productivity. Its durable construction ensures long-lasting performance even under heavy workloads and challenging field conditions.
The tractor offers exceptional versatility with compatibility across a wide range of implements. Combined with a high-capacity hydraulic system, advanced transmission, and air-conditioned cabin, the Solis S90 delivers the perfect balance of power, comfort, and efficiency for modern farming operations.
