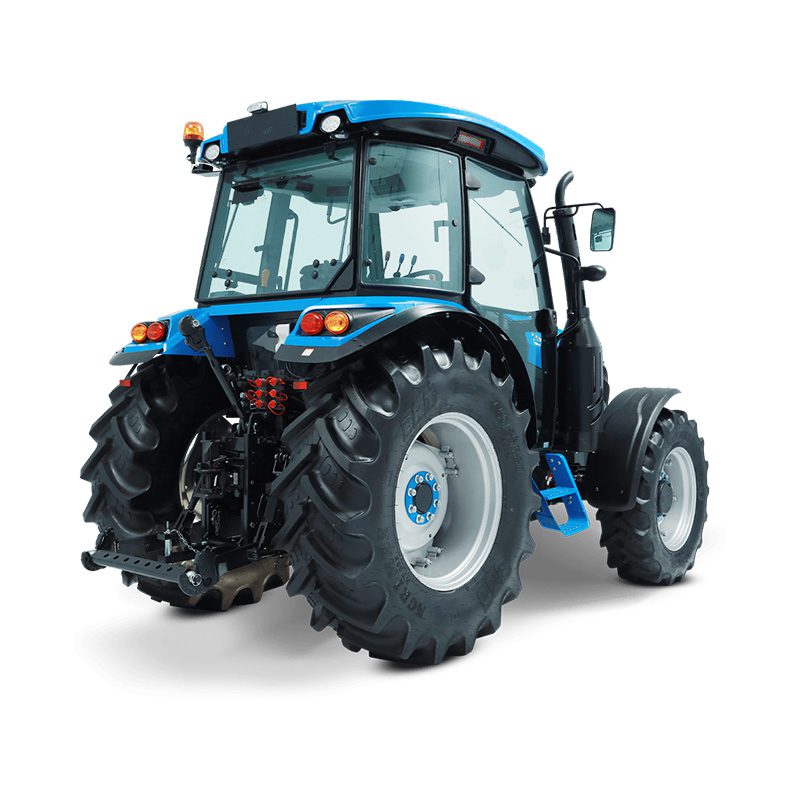

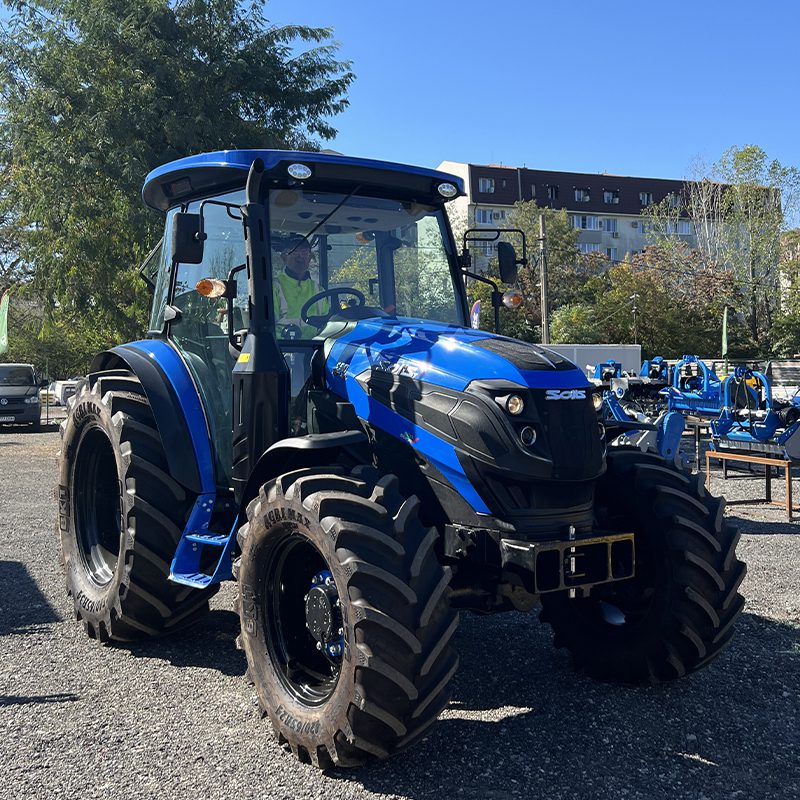

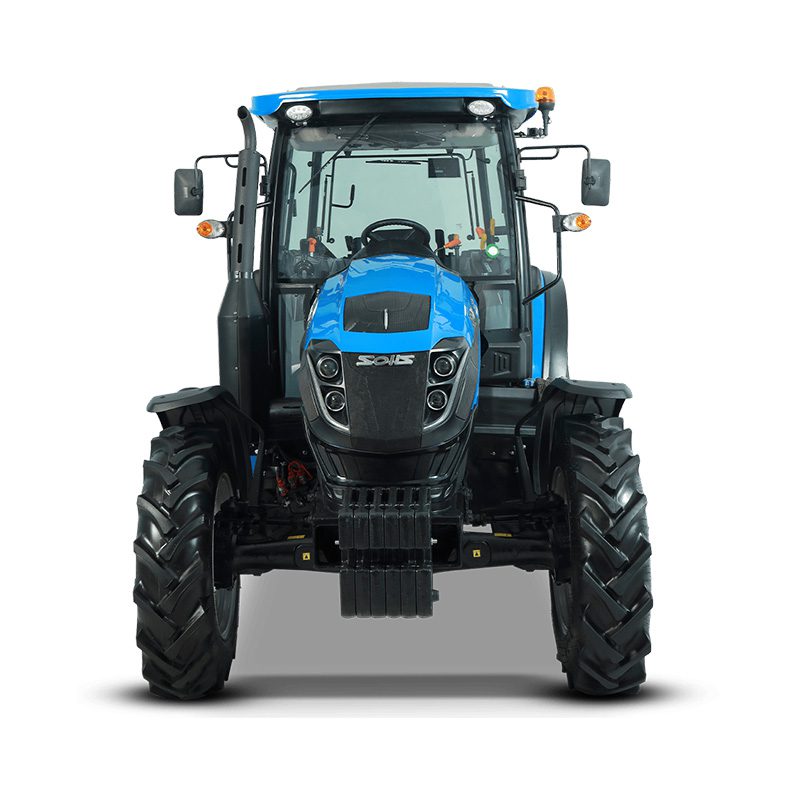

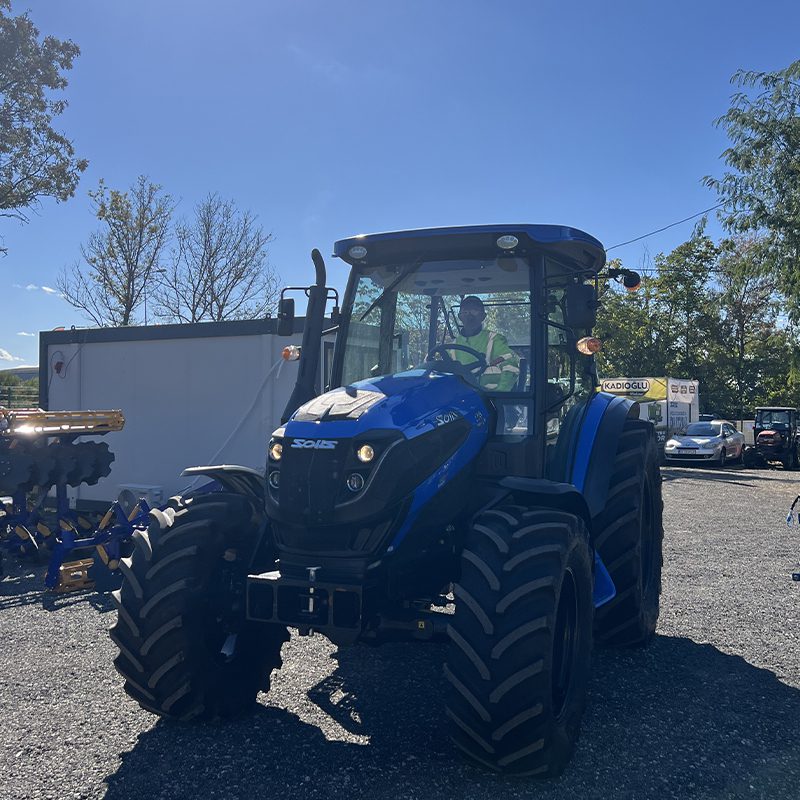

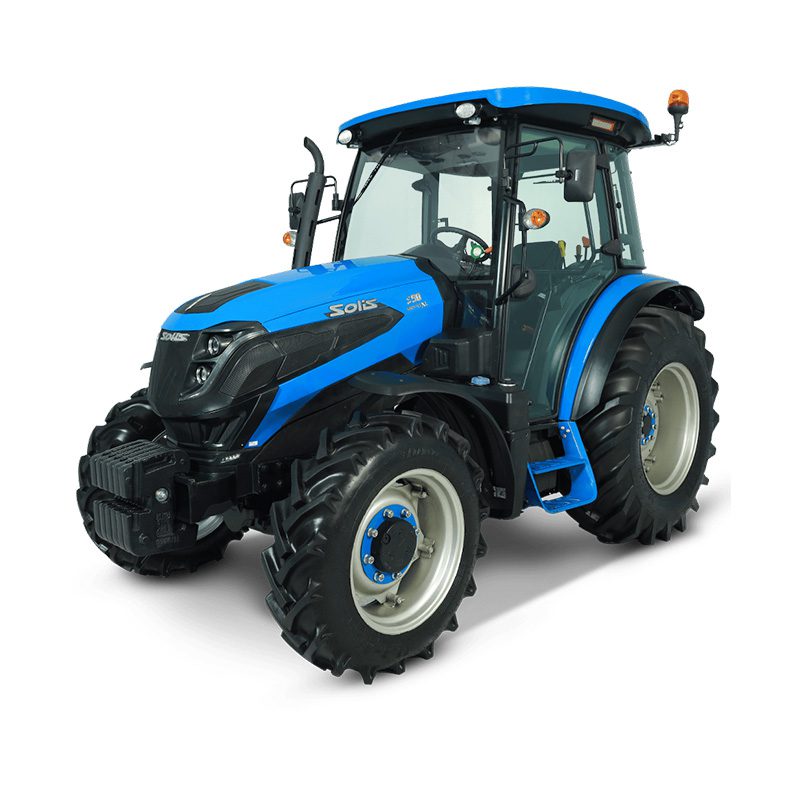

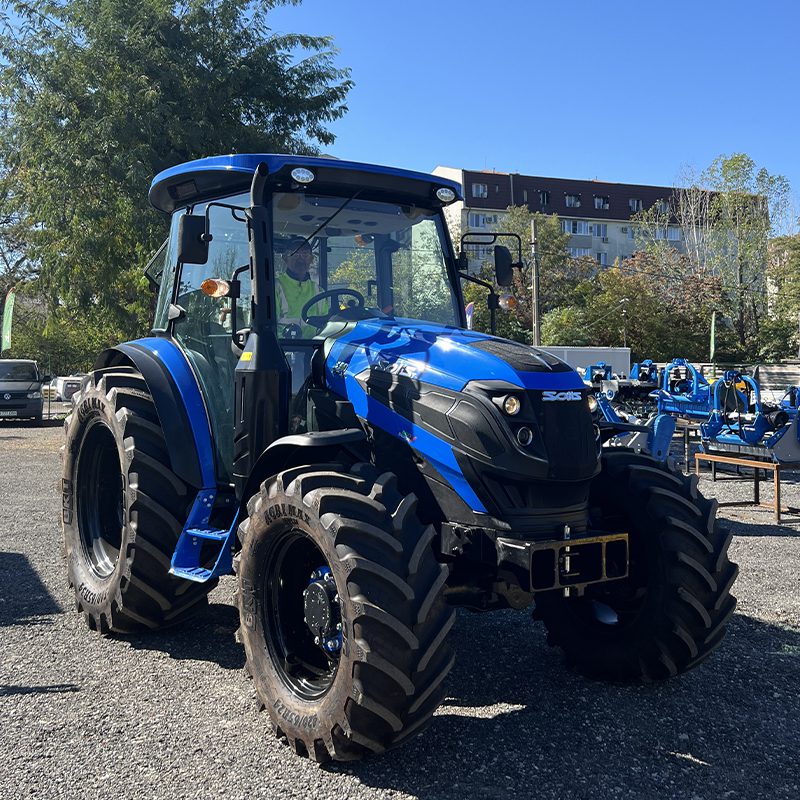

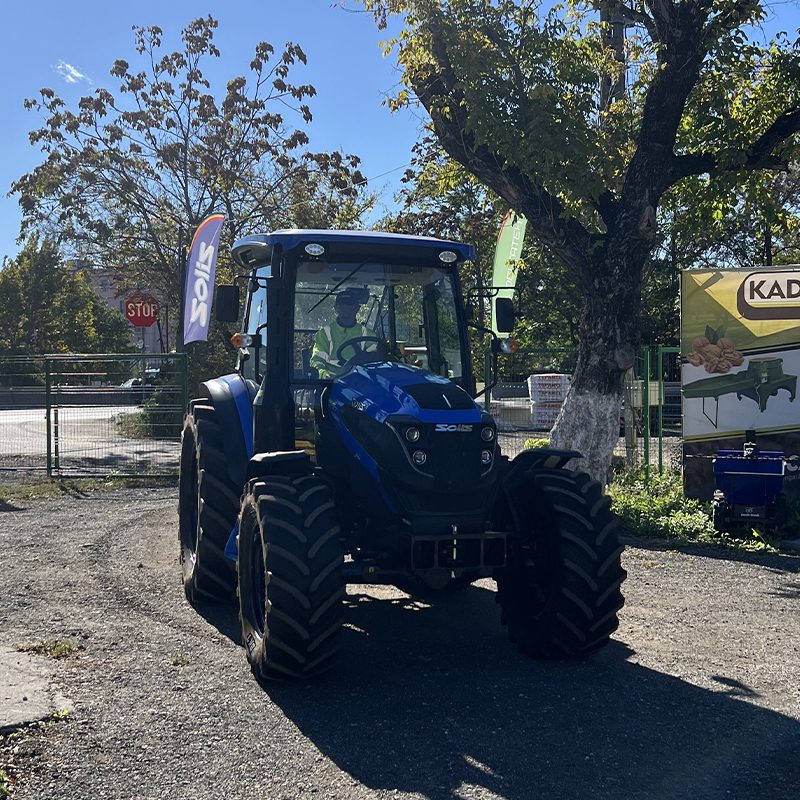

Solis S90
One Tractor. All Seasons. Zero Compromise
The Solis S90 90-hp tractor is engineered for farmers seeking a high-performance & comfortable machine to handle a wide range of farming tasks without compromise. Powered by a 90-hp 4-cylinder Stage V ITL engine, churning 375 Nm of torque, the S90 delivers impressive performance needed to handle demanding soil work, heavy implements & perform transport loading.
Paired with the engine, a 12F+12S Synchro Shuttle transmission enables operators to establish precise control over speed & direction, which reduces machine stress during exhausting field runs. With a 3,500-kg lift capacity, 55 LPM hydraulic flow capacity and an air-conditioned cabin, the S90 keeps operators productive & comfortable season after season while ensuring high efficiency.
90-hp ITL Stage V 4-Cylinder Engine
12F+12S Synchro Shuttle transmission
ROPS certified Safety Frame Standard
Cruise Control (Optional)
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | ITL 4-Cylinder CRDI, Turbocharged with Intercooler |
| HP Category | 90 HP |
| No. of Cylinders | 4 |
| Aspiration | Turbocharged with Intercooler |
| Cubic Capacity (cc) | 4086 |
| Rated RPM | 2200 |
| Air Cleaner | Dry Type with Clogging Sensor |
| Cold Start | Standard |
| Max Torque (Nm) | 375 |
| TRANSMISSION | |
| Drive | 4 WD |
| Clutch | NEC Double Dry Friction Plate with Springs |
| Gearbox | 12F + 12R Synchro Shuttle |
| Front Axle | 4WD |
| Transmission | Synchromesh + Constant Mesh |
| SPEED (FORWARD) Agri Tyre | |
| Maximum Speed (Km/Hr) | 33.43 |
| Minimum Speed (Km/Hr) | 1.65 |
| BRAKES | |
| Brakes | Oil Immersed Disc |
| Type of Actuation | Hydraulic Assisted |
| Parking Brake | Independent Mechanical |
| Differential Lock | Mechanical, Foot Operated |
| PTO | |
| PTO (rpm) | 540/540E |
| PTO (actuation) | Mechanical |
| STEERING | |
| Steering | Power (Hydraulic) |
| ELECTRICAL | |
| Battery | 12V, 100 Ah |
| Alternator | 12V, 90 A |
| Seven Pin Trailer Socket | Standard |
| HYDRAULICS | |
| 3 Point Linkage | Cat II |
| Stay Bars | Anchor Chain |
| Hydraulic Lifting Capacity (Kg) | 3000 (Standard) / 3500 (Optional) |
| Auxiliary Hydraulic Circuit | Available |
| TYRE | |
| Front | 320/85R24 |
| Rear | 460/85R30 |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| AGRI Front Tyre | 320/85R24 |
| RADIAL Front Tyre | 320/85R24 |
| CAPACITY (Ltrs.) (+/-5%) | |
| Fuel Tank (Ltr.) | 26 |
| TURNING RADIUS | |
| With Brakes (m) | 2.7 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights with std. Ballast | Front weights-15×2 |
|
Trailer Hitch
|
1. Semi Automatic Trailer Hitch |
| 2. Swinging Drawbar (Optional) | |
| ROPS | Yes |
| Cabin Option | Yes |
| Parameter | Value | ||
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | |||
| Weight (Kg) | 3890 | ||
| Wheel Base (mm) | 2350 | ||
| Total Length (mm) | 3985 / 4205 | ||
| Total Width (mm) | 2030 / 2050 | ||
| Height (mm) Up to ROPS | 2500 | ||
| Min Ground Clearance (mm) | 410 | ||
| Front Track (mm) | 1710 | ||
| Rear Track (mm) | 1590 |
| Special Feature | Details | ||
| Fuel Indicator Gauge | Standard | ||
| Front Tow Hook | Standard | ||
| Front & Rear Weights with std. Ballast | Front Weights: 15 x 2 (Optional) | ||
| Trailer Hitch | 1. Swinging Bar (Optional) 2. Clevis Hitch (Standard) 3. Semi-Automatic Hitch |
||
| Roll Over Protection | Standard | ||
| Canopy | Optional |
MAJOR APPLICATIONS
The Solis S90 is designed to cover a wide range of farming applications with its consistent power & precision. Its impressive hydraulic lift capacity makes it a preferred choice for loader work & heavy hauling, while the comfortable cabin allows operators to stay focused & in control throughout the day. Whether it’s soil preparation & seeding to using large implements and working in dynamic weather conditions, the Solis S90 handles challenging demands easily.
