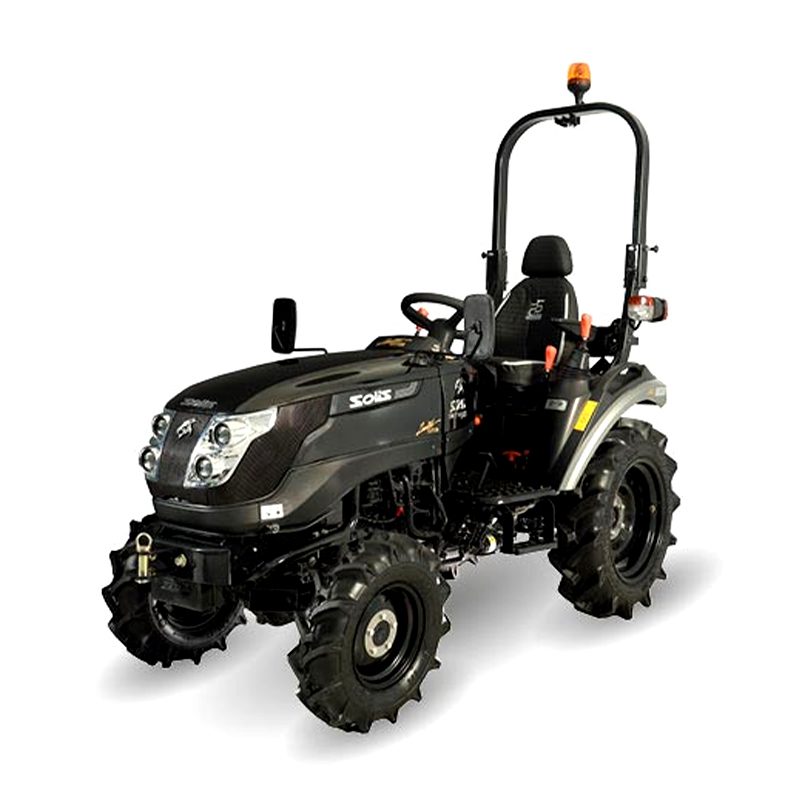

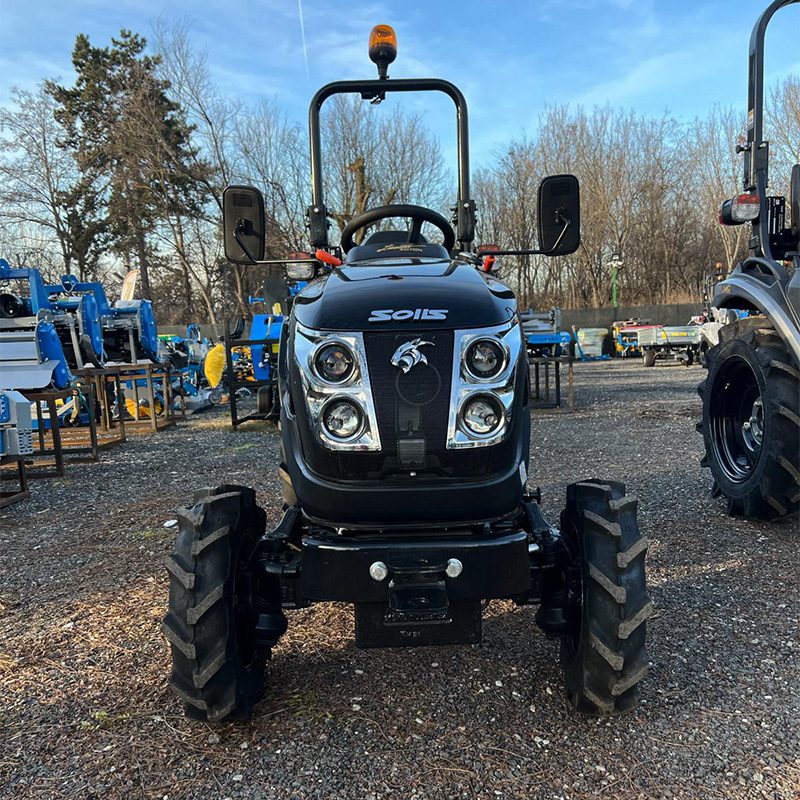

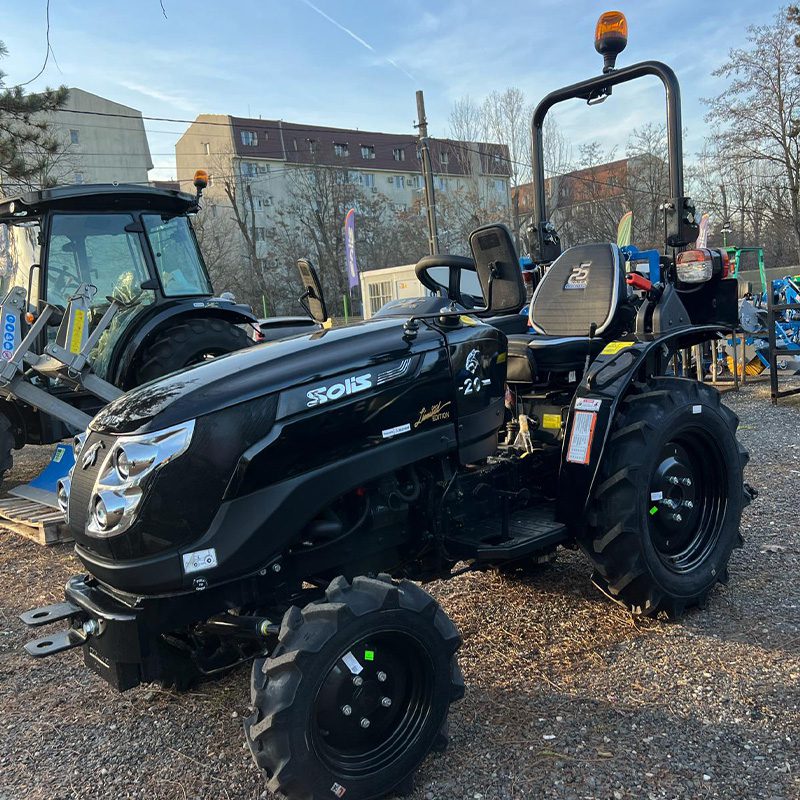

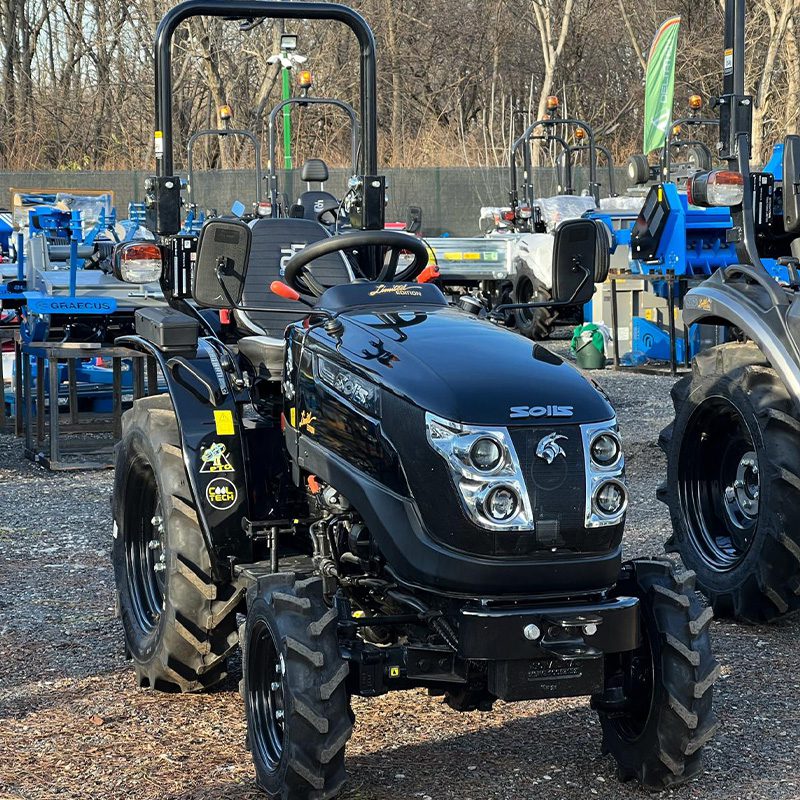

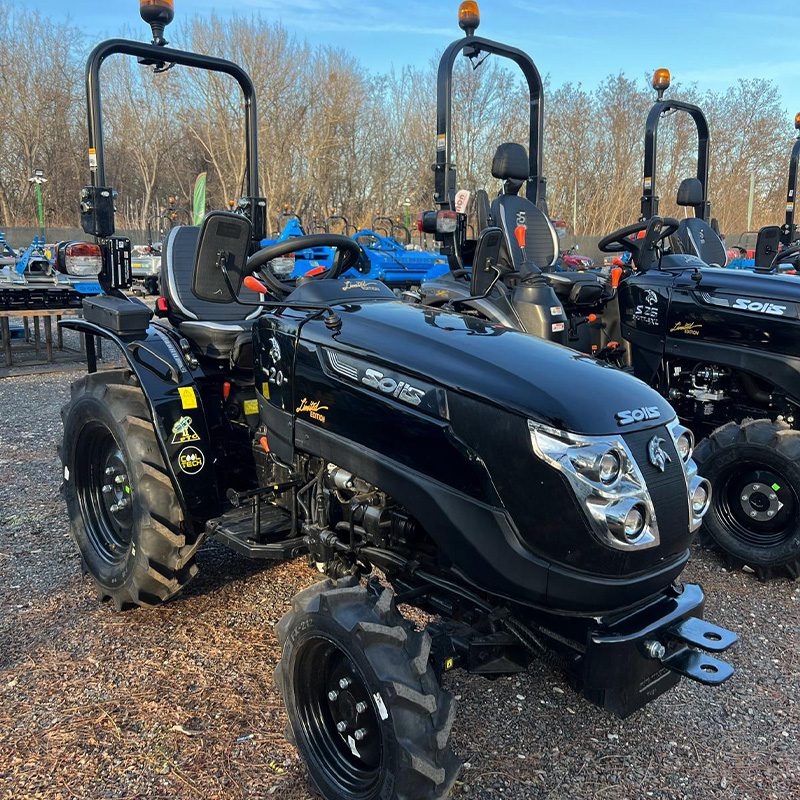

Solis S20 Panther Limited Edition Black
COMPACT POWER BUILT FOR CONTROLLED PRECISION
The Solis S20 Panther Limited Edition Black is a 20 HP compact tractor designed for light-duty agricultural, horticultural, and property maintenance applications where agility and ease of use are essential. Powered by a 3-cylinder MHI / ITL engine, it delivers dependable performance with fuel-efficient operation. The 6F+2R sliding mesh transmission offers straightforward gear selection for routine tasks, while 4WD improves traction across soft soil and uneven surfaces. With dry brakes, power steering, and a compact footprint, it is well-suited for orchards, gardens, small farms, and landscaping work. Multiple tyre options, including agricultural, turf, industrial, radial, and Galaxy Pro configurations, add versatility for varied operating conditions.
3-CYLINDER MHI / ITL ENGINE
6F+2R TRANSMISSION FOR SIMPLIFIED OPERATION
COMPACT 4WD DESIGN FOR TIGHT SPACES
LIMITED EDITION BLACK FINISH WITH FUNCTIONAL BUILD
TECHNICAL SPECIFICATION
| ENGINE | |
| Engine Type | MHI / ITL Engine |
| HP Category | 20 HP |
| No. of Cylinders | 3 |
| Aspiration | Natural |
| Cubic Capacity (cc) | 952 / 979 |
| Rated RPM | 2,700 |
| Air Cleaner | Dry with Sensor |
| Cold Start | Standard |
| Max Torque (Nm) | 50 / 48 |
| TRANSMISSION | |
| Drive | 4 WD |
| Clutch | Single |
| Gearbox | 6F + 2S |
| Front Axle | 4WD |
| Transmission | Sliding Mesh |
| SPEED (FORWARD) Agri Tyre | |
| Maximum Speed (Km/Hr) | 13.93 |
| Minimum Speed (Km/Hr) | 1.3 @ 2,700 rpm/td> |
| BRAKES | |
| Brakes | Dry |
| Type of Actuation | Mechanical |
| Parking Brake | Independent |
| DIFFERENTIAL LOCK | |
| Differential Lock | Mechanical |
| PTO | |
| PTO (RPM) | 540 / 1,000 |
| PTO (Actuation) | Mechanical |
| STEERING | |
| Steering | Power Steering |
| ELECTRICAL | |
| Battery | 12V, 65 Ah |
| Alternator | 12V, 42 A |
| Seven Pin Trailer Socket | 12V Output |

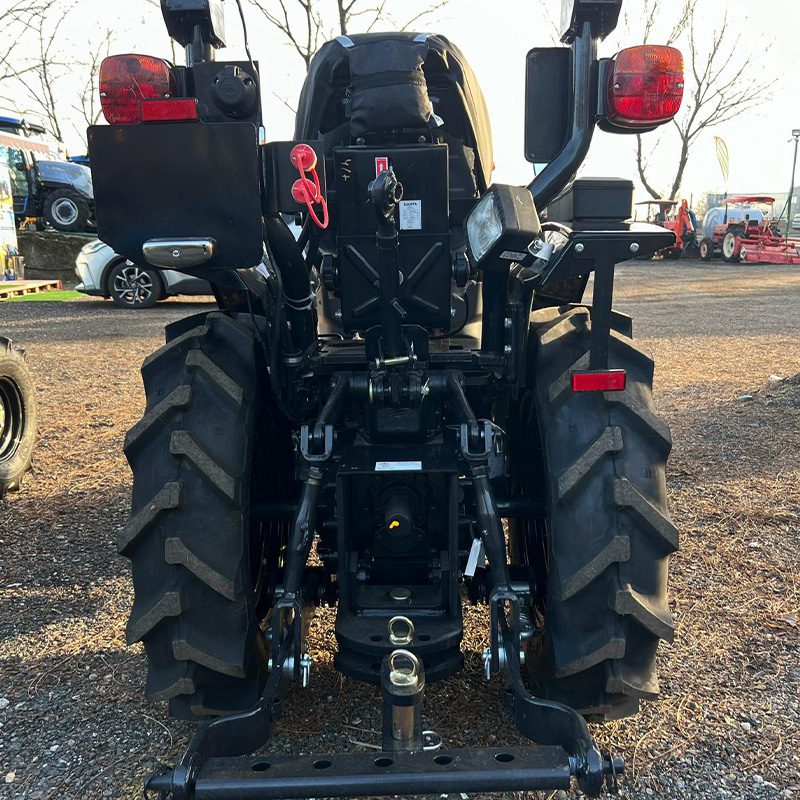

| HYDRAULICS | |
| 3 Point Linkage | Cat 1-N |
| Hydraulic Lifting Capacity (Kg) | 500 |
| Auxiliary Hydraulic Circuit | 1 Double Acting / 1 Single Acting (Optional) |
| TYRE | |
| Front | 6×12 |
| Rear | 8.3×20 |
| Clutch Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
| TURF – Front Tyre | 23×8.50-12 |
| INDUSTRIAL – Front Tyre | 23×8.50-12 |
| AGRI – Front Tyre | 6×12 |
| RADIAL – Front Tyre | 6.5/80-12 |
| GALAXY PRO – Front Tyre | 220/55 R12 |
| CAPACITY (Ltrs.) (+/-5%) | |
| Fuel Tank (Ltr.) | 26 |
| TURNING RADIUS | |
| With Brakes (m) | 2.7 – 3.0 |
| OTHERS | |
| Fuel Indicator Gauge | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights with std. Ballast | Front weights-15×2 |
|
Trailer Hitch
|
1. Semi Automatic Trailer Hitch |
| 2. Swinging Drawbar (Optional) | |
| ROPS | Yes |
| Cabin Option | Yes |
| Parameter | Value | ||
| DIMENSION & WEIGHT (+/-5%) Agri Tyre | |||
| Weight (Kg) | 935 | ||
| Wheel Base (mm) | 1,420 | ||
| Total Length (mm) | 2735 | ||
| Total Width (mm) | 930 (min) – 1,180 (max) | ||
| Height (mm) Up to ROPS | 1,945 | ||
| Min. Ground Clearance (mm) | 200 | ||
| Front Track (mm) | 781 | ||
| Rear Track (mm) | 724 |
| Fuel Indicator Gauge | Standard |
MAJOR APPLICATIONS
The S20 is designed for tasks where larger tractors become inefficient or impractical. Ideal for orchard rows, vineyards, nurseries, and landscaped properties where space is limited. It handles light tilling, spraying, mowing, and basic haulage efficiently, making it a practical choice for compact farming and maintenance operations.
